Product Description:

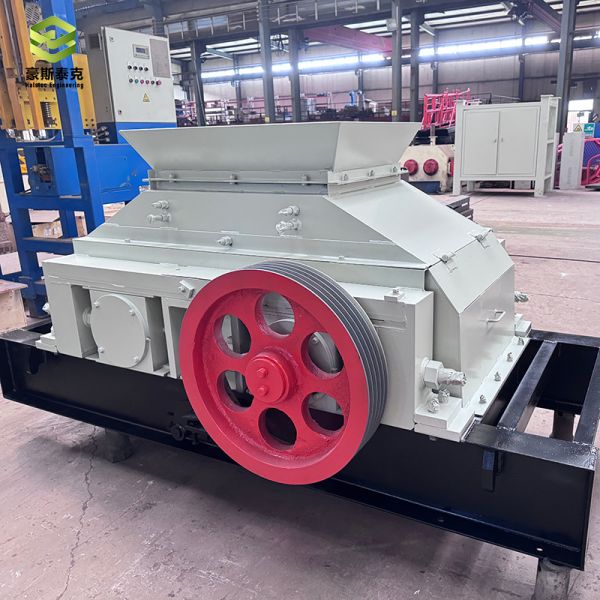

The roller crusher is a high-efficiency crushing equipment
specifically designed for the raw material processing stage of the
brick and tile manufacturing industry. It provides an integrated
solution for crushing, homogenizing, and refining common mixed raw
materials in brick factories, such as clay, coal gangue, shale, and
sludge. By using two counter-rotating rollers to squeeze and shear
the material, it can easily crush large pieces of raw material to
the uniform particle size required for brick making. It is an ideal
choice for optimizing mixing and extrusion processes and improving
the quality of the final brick blanks.
Features:
-Heavy-duty roller design: The rollers are cast from high-chromium
alloy or manganese steel and undergo a special heat treatment
process, resulting in extremely high wear resistance and impact
resistance, and a long service life.
-Flexible gap adjustment: A unique roller gap adjustment mechanism
allows for easy operation and quick, precise adjustment of the
output particle size to meet the requirements of different brick
types.
-Reliable overload protection: Equipped with a hydraulic or
spring-type safety protection system, it is highly responsive and
effectively eliminates interference from hard objects such as iron,
ensuring continuous and stable operation of the equipment.
-High-efficiency transmission system: Utilizing heavy-duty bearings
and universal joints, the transmission system offers high
efficiency, smooth operation, and powerful performance, adapting to
heavy-duty conditions.
Technical Parameters:
| Capacity | ≥15m³/hr |
| Certification | CE/ISO |
| Power | 37kw + 37kw |
| Specification | Full Steel Structure |
| Model | GS800*600 |
| Name | Roller Crusher |
| Function | To further crush raw materials into particle size of ≤ 2mm |
| Structure | Full Steel Design with Longer Usage Life |
| Highlight | Auto, Brick Factory, Brick Machine |
| Warranty | 1 Year |
Applications:
--Applicable Materials:
Clay: Breaks up clods and eliminates bumps.
Coal Gangue: Crushes it to the appropriate particle size required
for brick making.
Shale: Provides efficient medium and fine crushing.
River Silt, Construction Waste: Processes sticky and wet materials,
crushing and homogenizing them.
--Process Location: Typically located after a plate feeder or box
feeder and before a mixer or roller mill, it is the core stage of
raw material processing.
Packing and Shipping:
Our Automatic Brick Making Machine is carefully packaged to ensure
safe delivery and optimal protection during transit. The machine is
securely wrapped with waterproof and anti-rust materials to prevent
any damage caused by moisture and corrosion. All delicate
components are cushioned with foam padding and reinforced with
sturdy wooden crates to withstand handling and transportation
stresses.
For shipping, we offer multiple options including sea freight, air
freight, and land transport, depending on the destination and
customer preference. The packaging is designed to comply with
international shipping standards, ensuring the product arrives in
excellent condition. Detailed documentation such as packing list,
user manual, and warranty card are included in the shipment for
customer convenience.
Before dispatch, each machine undergoes thorough inspection and
quality checks. We also provide professional loading services to
maximize safety and efficiency during shipment. Our dedicated
logistics team ensures timely delivery and constant communication
throughout the shipping process.
FAQ:
Q1: What is the brand and model number of the Automatic Brick
Making Machine?
A1: The machine is branded Halstec, and the model number is
GS800×600.
Q2: Where is the Automatic Brick Making Machine manufactured?
A2: The machine is made in China.
Q3: What certifications does the Halstec Automatic Brick Making
Machine have?
A3: This machine is certified with CE and ISO standards.
Q4: What is the minimum order quantity and pricing for the machine?
A4: The minimum order quantity is 1 set, and the price is
negotiable.
Q5: What are the payment terms and delivery time for the Automatic
Brick Making Machine?
A5: Payment terms include T/T, LC, or negotiation. Delivery time is
typically 60-70 days after receiving the advanced payment.
Q6: How is the Automatic Brick Making Machine packaged for
shipment?
A6: The machine is shipped nude in the container.
Q7: What is the supply ability of the Halstec Automatic Brick
Making Machine?
A7: The supply ability is 1-3 sets per month.
